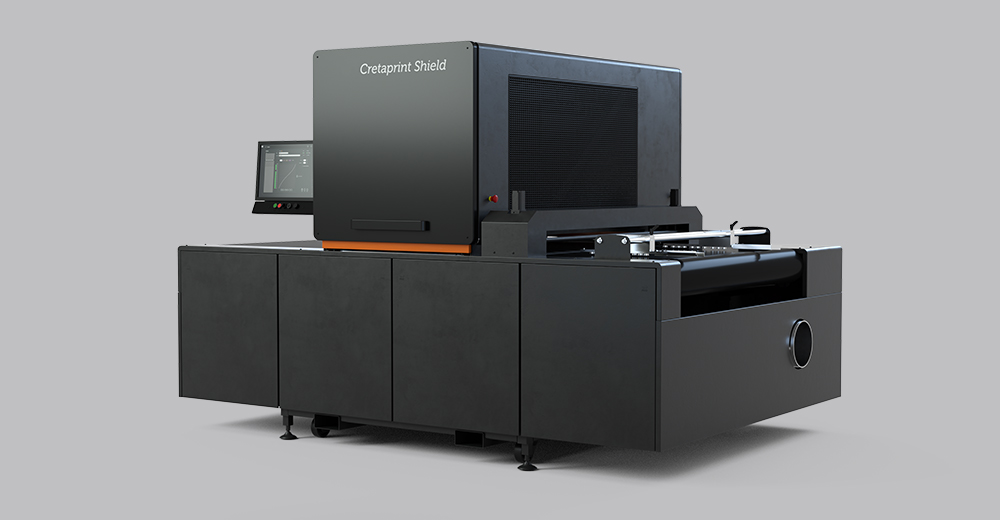

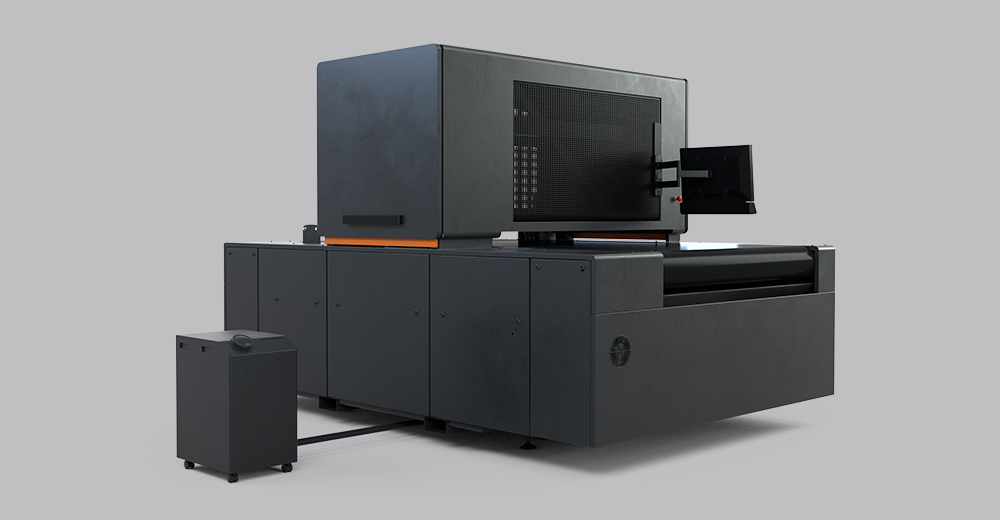

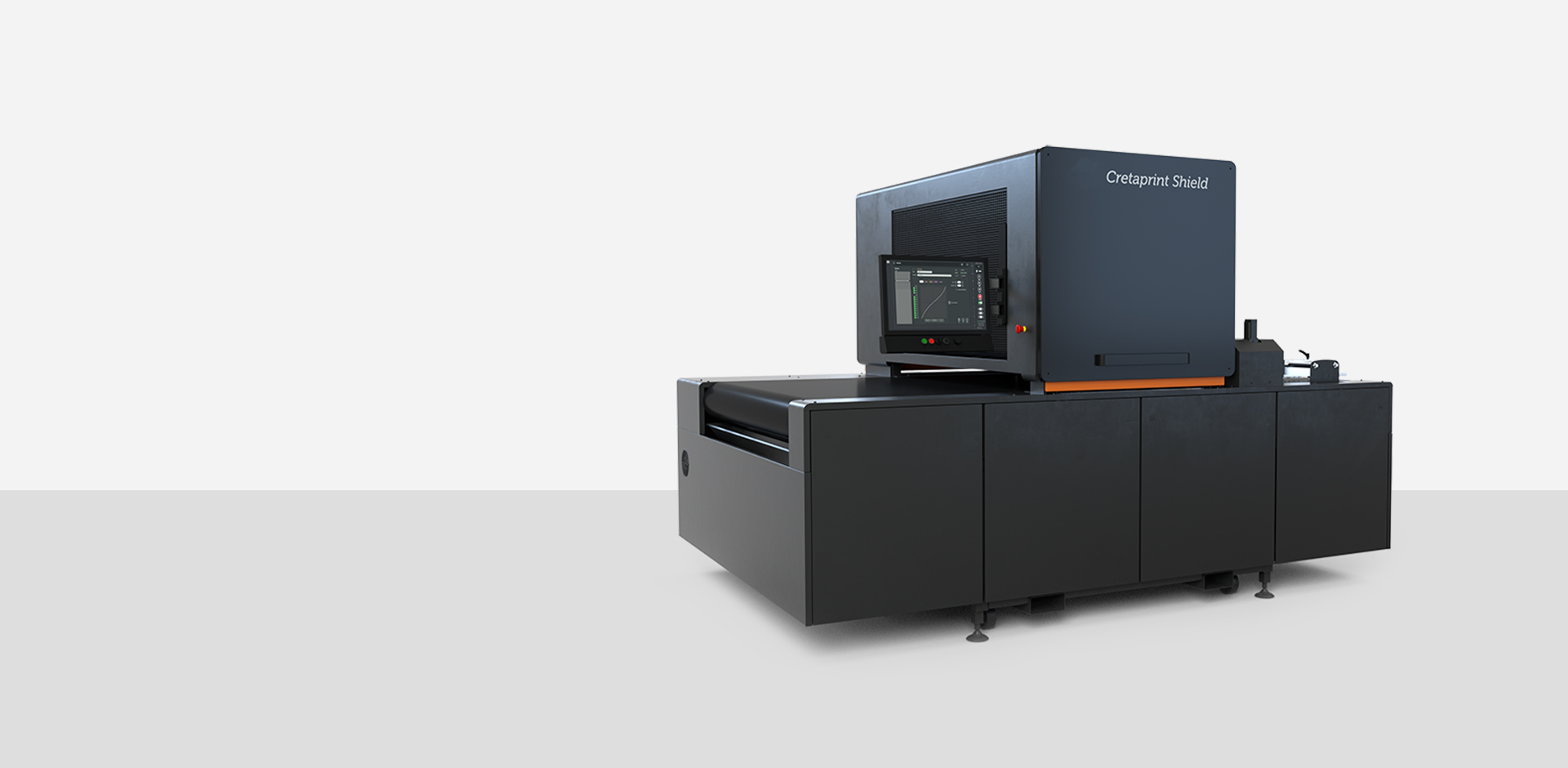

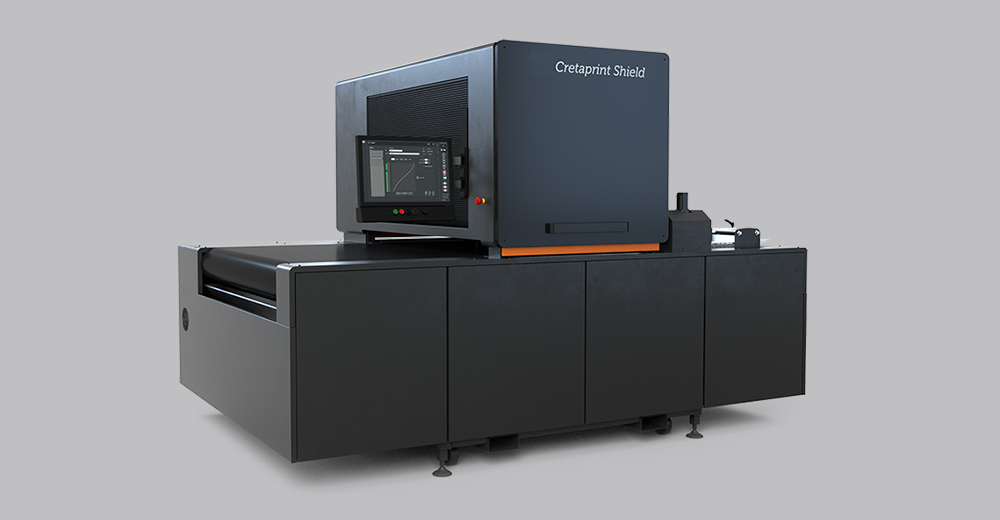

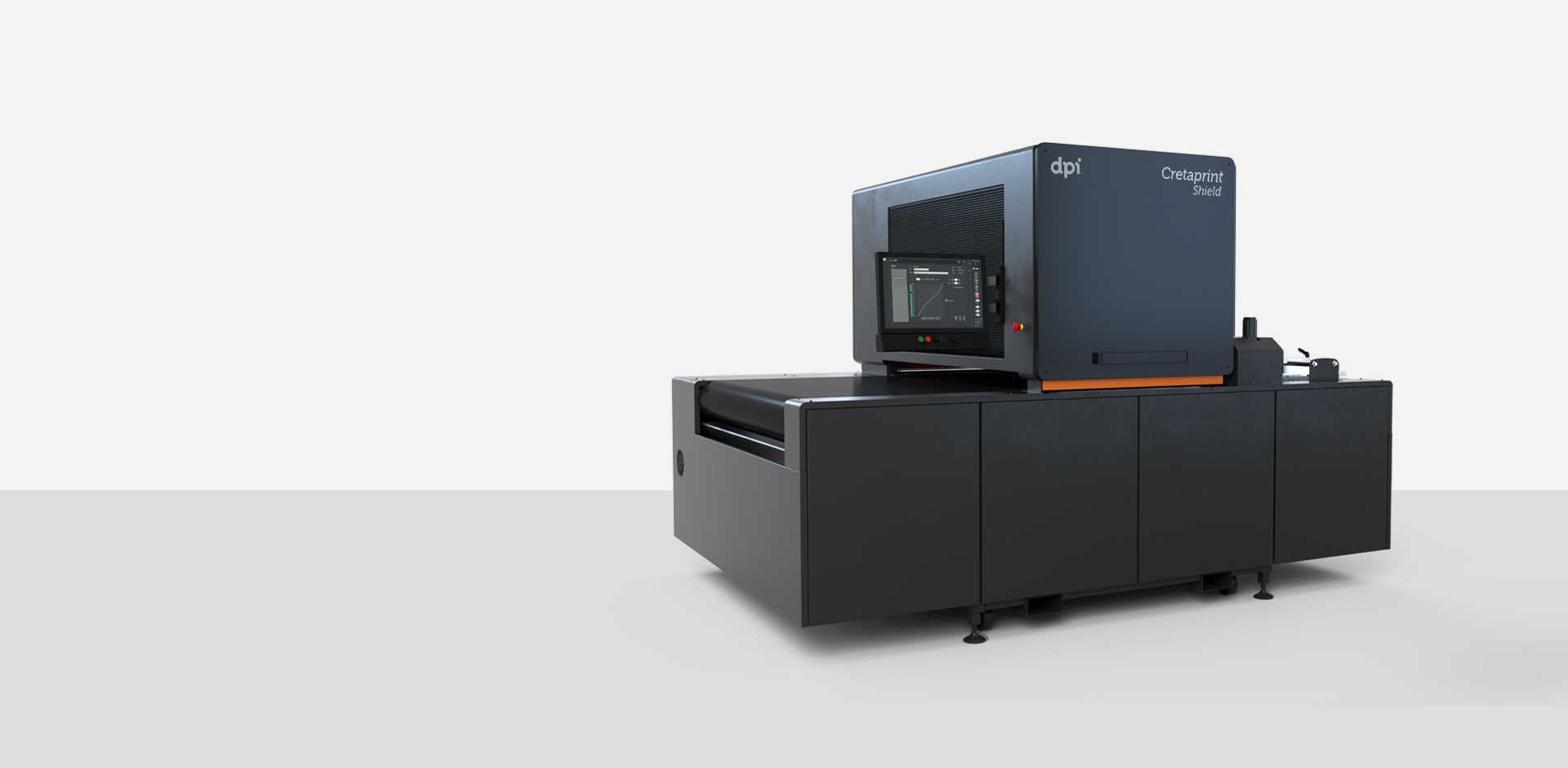

Digital Glazing Machine

DPI Cretaprint's digital glazing line empowers ceramics with precise glaze control— reducing waste, ensuring uniform layers, and enhancing quality.

Modular scalability and seamless integration adapt to evolving production needs, transcending fixed-configuration limitations.

Automated workflows minimize manual intervention, reducing labor costs while enhancing operational efficiency.

SMART DYNAMIC RECIPE MANAGEMENT

HIGH-PRECISION GLAZE THICKNESS CONTROL

PRECISE GLAZING CONTROL

SMART DYNAMIC RECIPE MANAGEMENT

· Smart dynamic recipe management and precise glazing control enable millimeter-level glaze thickness and placement.
· The glazing process combines precision, flexibility & high efficiency, injecting digital productivity into ceramic production.
· Intelligent processes replace manual operations, significantly accelerating production.

HIGH-PRECISION GLAZE THICKNESS CONTROL

· Controls glaze thickness with micron-level precision to meet glazing requirements of different ceramic types, ensuring uniform glaze texture.
· Independent thickness control by zones, with differentiated settings for patterned tile areas to enhance decorative effects.
· Precisely captures tile positions, keeping glaze placement errors within an extremely small range to ensure pattern integrity.

PRECISE GLAZING CONTROL

· Adjust glaze formula proportions efficiently according to popular market colors and process requirements to adapt to diverse designs.

Technical Data

Machine Specifications	C5	D5	M5	N5	P5	P5+	SHIELD
Max printing width	710 mm	710 mm	1138 mm	1138 mm	1440 mm	1440 mm	1440 mm
No. of inks	Up to 8	Up to 12	Up to 8	Up to 12	Up to 8	Up to 12	Up to 2
Print direction	Right / Left
Min. tile thickness	From 0.12 in (3 mm)
Max. tile thickness	30 mm				60 mm
Print speed	Up to 196.85 ft/min ( 60 m/min)
Centering printing precision	0.012 in (< 0.3 mm)

Printheads Data

Printhead type	Seiko RC 1536	Seiko RC 1536 · L	e·D5	e·Q5	e·G5	Dimatix SG 1024 MC	Dimatix SG 1024 HFL
Printhead width	4.26 in (108.3 mm)					2.55 in (64.96 mm)
No. of nozzles	1536					1024
Native resolution	360 dpi					400 dpi
Drop size (pL)	13-98	25-225	23-100	13-100	25-225	22-80	80-200
Grayscale levels	UP to 8	UP to 10	UP to 5	UP to 8	UP to 11	UP to 4	UP to 4
Firing frequency (KHz)	Up to 37	Up to 37	Up to 41	Up to 37	Up to 41	Up to 35	Up to 20
gr/㎡ @25 m/min	Up to 45	Up to 85	Up to 55	Up to 45	Up to 85	Up to 41*	Up to 68*

*With specific Ceramics ink
