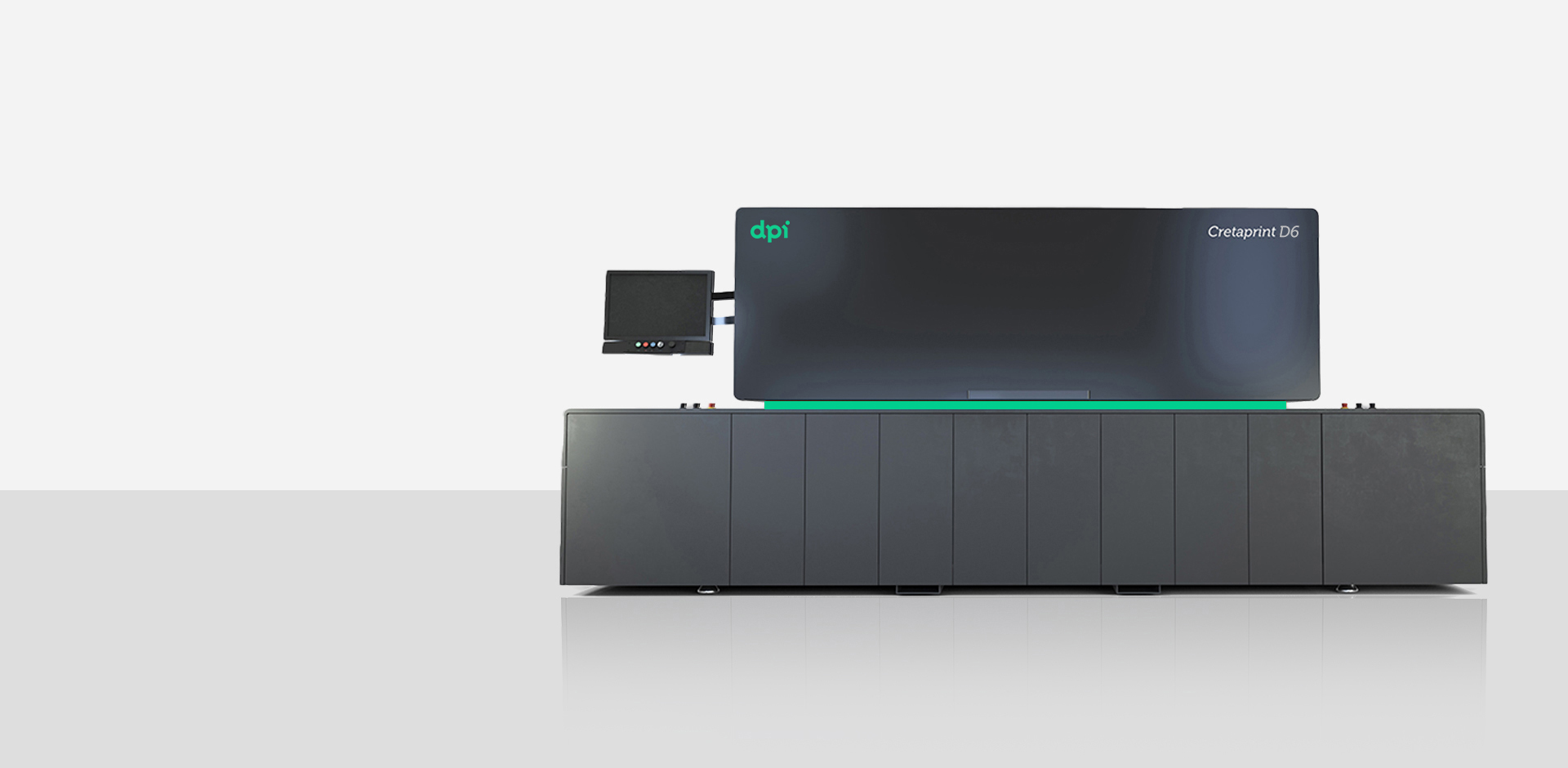

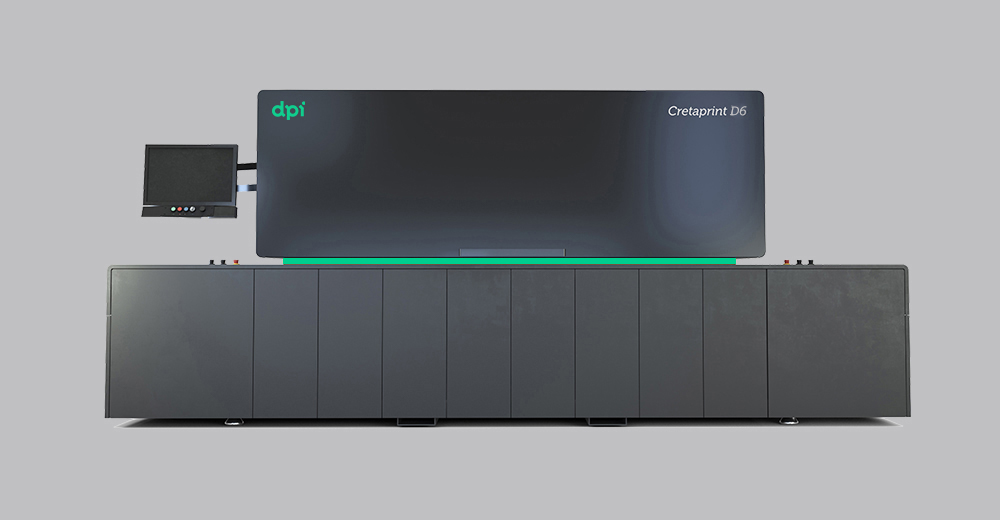

Digital Inkjet Printer

Engineered for modern production, it delivers precise results, quick changeovers, and vibrant colors in every batch.

Whether handling high-volume orders or customized designs, its flexible setup and dependable performance help you cut lead times and lower operating costs.

Boost productivity, reduce costs, and unlock new potential in ceramic printing.

SHARP, CRISP DETAILS
WITH CONSISTENT COLOR ACCURACY

FAST CHANGEOVERS
TO KEEP PRODUCTION FLEXIBLE

HANDLES BOTH HIGH-VOLUME RUNS
AND SMALL-BATCH PRODUCTION

STABLE PERFORMANCE
THAT REDUCES DOWNTIME

High-Precision Printing

Dimatix Printhead Performance

Seiko Printhead Reliability

Simplified Operation

Industry 4.0 Integration

High-Precision Printing

· Advanced printing technology designed to boost ceramic production efficiency.
· High-precision printhead mounting minimizes adjustments, saving time and labor.
· Optimized ink-delivery system supports high-productivity printheads with full circulation, zero sediment, and stable output.
· Continuous bidirectional communication with printheads enables intelligent automation, reducing manual intervention for more efficient production.

Dimatix Printhead Performance

· Optimized ink-path temperature control ensures stable flow and consistent output.
· High-speed data transmission delivers fast, high-precision printing.
· Independent cooling keeps printheads stable under heavy workloads.
· Dimatix-engineered ink-delivery system boosts durability and steady performance.
· Modular design simplifies maintenance and lowers service costs.

Seiko Printhead Reliability

· A cost-effective, high-quality printhead delivering stable, long-term performance.
· High-speed output with consistent quality to boost productivity.
· Wide droplet range for both precision printing and large ink output.
· Adjustable printhead height for smooth handling of irregular or relief products.

Simplified Operation

· Industry-first TAS on-the-fly color adjustment system delivers pinpoint color control.
· Multilingual touchscreen simplifies operation with one-tap access to core functions, print channels, and transport systems.
· Real-time job alerts help maintain smooth, efficient production.

Industry 4.0 Integration

· Standard Modbus interface enables SCADA and PLC access to printer data for transparent, controllable production.
· Supports multi-printer linkage and synchronization for efficient line collaboration and smart factory upgrades.
*Linked devices must support the linkage function.

Technical Data

Machine Specifications	C6	D6	M6	N6	P6	P6+	SHIELD	SHIELD +
Max printing width	704 mm	704 mm	1152 mm	1152 mm	1408 mm	1408 mm	1408 mm	1408 mm
No. of inks	Up to 8	Up to 12	Up to 8	Up to 12	Up to 8	Up to 12	Up to 2	Up to 6
Print direction	Right / Left
Min. tile thickness	3 mm
Max. tile thickness	30 mm				60 mm
Print speed	Up to 196.85 ft/min ( 60 m/min )
Centering printing precision	0.012 in (<0.3 mm)

Printheads Data

Printhead type	Seiko RC 1536	Seiko RC 1536 · L	ED5	EQ5	EQ5 L	Dimatix SG1024 MC	Dimatix SG1024 HFL
Native resolution (dpi)	360	360	360	360	360	400	400
Drop size (pL)	13 - 98	25 - 225	22 - 110	12 - 100	30 - 220	22 - 66	35 - 150
Grayscale levels	UP to 8	UP to 8	UP to 6	UP to 6	UP to 6	UP to 4	UP to 4
Firing frequency (KHz)	Up to 37	Up to 37	Up to 41	Up to 41	Up to 41	Up to 35	Up to 20
gr/㎡ @25 m/min*	Up to 40	Up to 80	Up to 68	Up to 45	Up to 85	Up to 40	Up to 65

*It is related to the ink characteristics.
