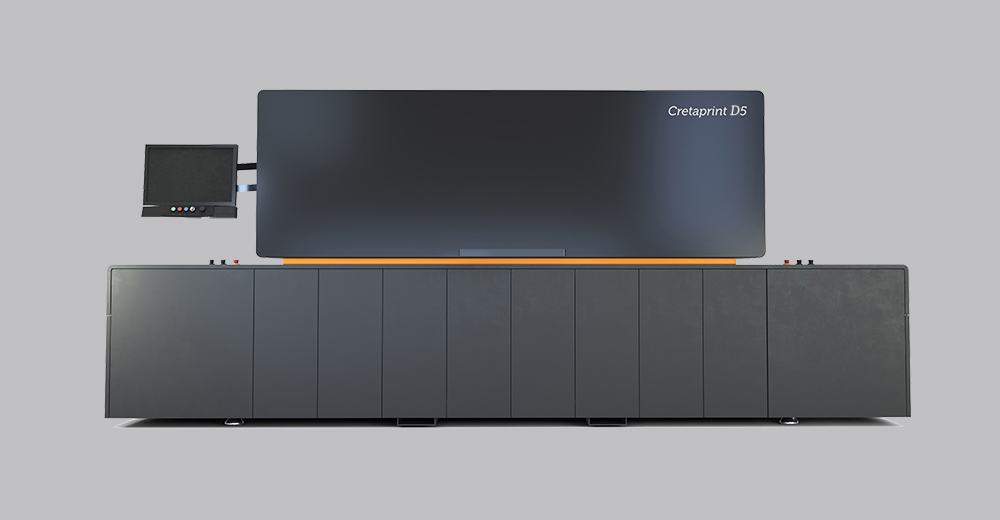

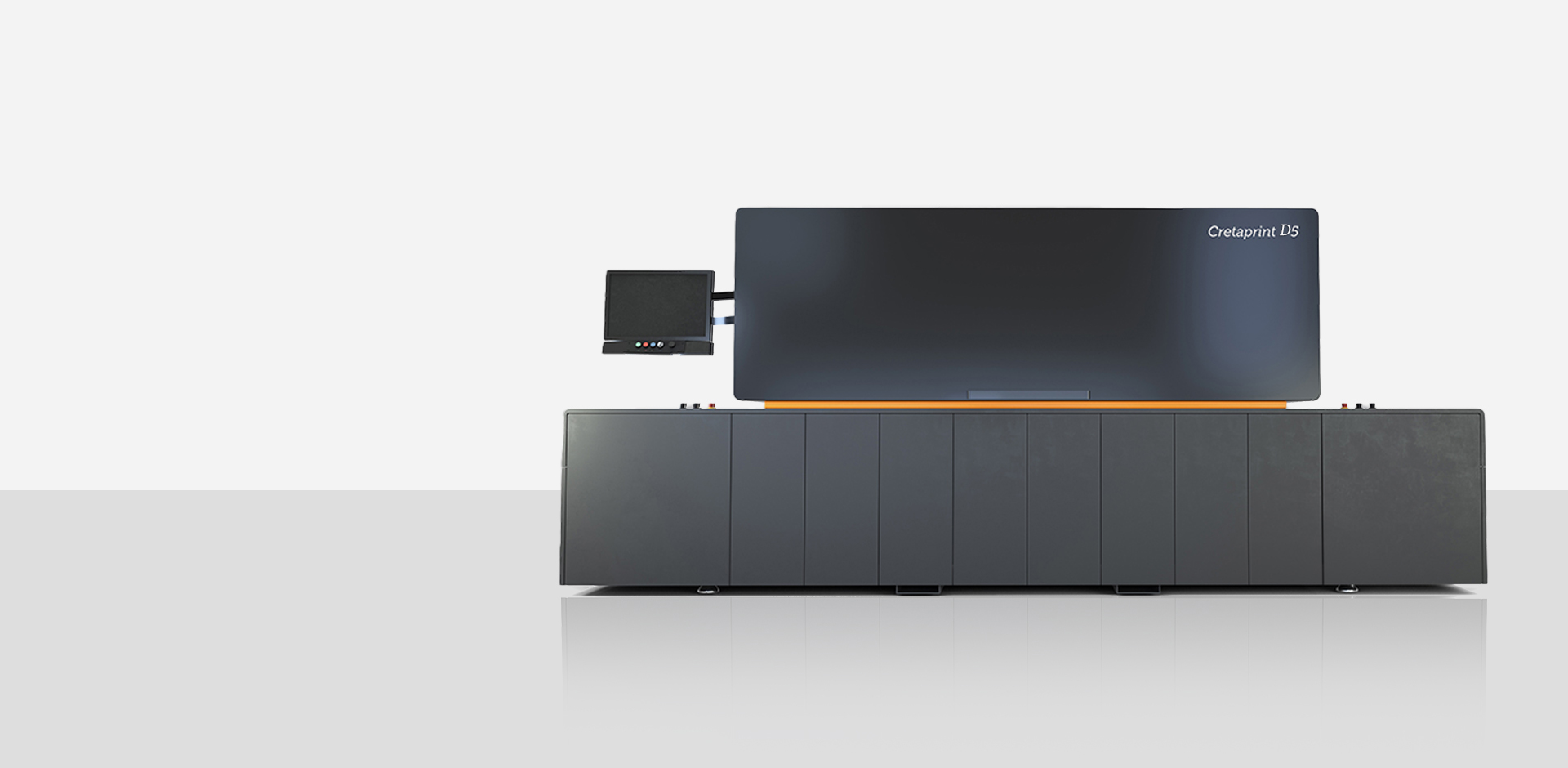

DPI Cretaprint Ceramic Digital Printing Solution:Built on the iconic modular design, it integrates advanced technology and durable features.

Equipped with multiple high-performance printhead options, it flexibly adapts to different production tasks,

responding nimbly to small-batch customizations and ensuring efficient and stable large-scale production.

Boost your productivity, slash costs, and unlock new possibilities in ceramic printing.

DIMATIX / SEIKO PRINT HEADS
FLEXIBLY ADAPT TO PRODUCTION TASKS

TAS & SCADA INDUSTRY 4.0
INTELLIGENT PRODUCTION MANAGEMENT

EFFICIENT INK SYSTEM
TOTAL RECIRCULATION, ZERO SEDIMENT

NEW SOFTWARE & ELECTRONICS
BIDIRECTIONAL PRINTHEAD COMM.

HIGH-PRECISION PRINTHEAD MOUNTING
ENSURES PERFECT ALIGNMENT

SUPERIOR PRINTING TECHNOLOGY

PRINTER WITH DIMATIX PRINTHEAD

PRINTER WITH SEIKO PRINTHEAD

EASY TO OPERATE

ADVANCING IN INDUSTRY 4.0

SUPERIOR PRINTING TECHNOLOGY

· Superior Printing Technology to boost ceramic production efficiency.
· High-precision printhead mounting design reduces post-adjustments, saving time and effort.
· Improved ink delivery system adapts to high-productivity printheads; full circulation, zero sediment and constant temp. control ensure stable output as standard.
· Continuous bidirectional communication with printheads enables intelligent automatic operation, significantly reducing manual intervention for more efficient production.

PRINTER WITH DIMATIX PRINTHEAD

· Full ink path temp. control system: Ensures ink fluidity and constant temperature for excellent print quality
· Ultra-high bandwidth data system: Rapidly transmits massive data, enabling printheads to respond fast for high-speed, high-precision printing
· Individual cooling system: Controls core component temperatures during high-load printing, ensuring stable operation
· Unique Dimatix printhead ink delivery system: Guarantees long-term printhead stability
· Supports modular maintenance and single-component replacement, reducing maintenance costs

PRINTER WITH SEIKO PRINTHEAD

· As the most economical high-quality printer option, it delivers cost-effective excellence for your production.
· High-speed printing with superior quality, boosting efficiency and productivity.
· Wider droplet size range adapts to diverse sizes, balancing high precision and large ink output effortlessly.
· Larger adjustable printing height range, easily handling irregular and relief products to expand business possibilities.

EASY TO OPERATE

· TAS - Industry-first on-the-fly color adjustment system for more precise color control
· Multilingual touchscreen for easy operation; one-click access to essential functions, printing channels, and transport systems.
· Real-time job alerts for significantly improved operational efficiency

ADVANCING IN INDUSTRY 4.0

· Standard Modbus protocol interface allows third-party SCADA and PLC to access printer parameters, ensuring transparent and controllable production data.
· Supports linkage and synchronization of multiple printing devices for efficient production line collaboration, facilitating smart factory upgrading.
*Requires linked devices to support linkage function

Technical Data

Machine Specifications	C5	D5	M5	N5	P5	P5+	SHIELD
Max printing width	710 mm	710 mm	1138 mm	1138 mm	1440 mm	1440 mm	1440 mm
No. of inks	Up to 8	Up to 12	Up to 8	Up to 12	Up to 8	Up to 12	Up to 2
Print direction	Right / Left
Min. tile thickness	From 0.12 in (3 mm)
Max. tile thickness	30 mm				60 mm
Print speed	Up to 196.85 ft/min ( 60 m/min)
Centering printing precision	0.012 in (< 0.3 mm)

Printheads Data

Printhead type	Seiko RC 1536	Seiko RC 1536 · L	Epson e·D5	Epson e·Q5	Epson e·G5	Dimatix SG 1024 MC	Dimatix SG 1024 HFL
Printhead width	4.26 in (108.3 mm)					2.55 in (64.96 mm)
No. of nozzles	1536					1024
Native resolution	360 dpi					400 dpi
Drop size (pL)	13-98	25-225	23-100	13-100	25-225	22-80	80-200
Grayscale levels	UP to 8	UP to 10	UP to 5	UP to 8	UP to 11	UP to 4	UP to 4
Firing frequency (KHz)	Up to 37	Up to 37	Up to 41	Up to 37	Up to 41	Up to 35	Up to 20
gr/㎡ @25 m/min	Up to 45	Up to 85	Up to 55	Up to 45	Up to 85	Up to 41*	Up to 68*

*With specific Ceramics ink
